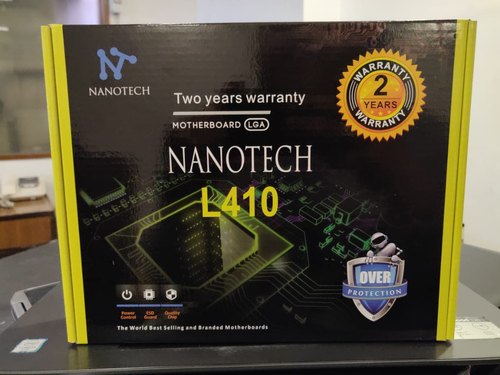

NANOTECH L410 G31/G965 Motherboard

Description

Chipset : 1. Northbridge: Intel® G31 Express Chipset
2. Southbridge: Intel® ICH7
CPU

1. LGA775 for Intel® Core™ 2 Extreme quad-core / Core™ 2 Extreme dual-core / Core™ 2 Quad / Core™ 2 Duo / Pentium® processor Extreme Edition / Pentium® D / Pentium® 4 / Celeron® D
2.LGA771 for Intel® Xeon® Processor 51XX / 52XX / 53XX / 54XX Series
3. Supports 1333/1066/800/533MHz FSB

Graphics

1. Intel® GMA3100

2. 1 VGA port

Memory

1. Supports DDR2 667/800 memory

2. Dual Channel architecture support up to 4GB by 2 DIMM slots

Expansion Slots

1. 1 PCI Express X16 slot

2. 1 PCI slots

LAN

Realtek 8105E 10/100M LAN Controller

Form Factor 210 x 170mm
Audio

Realtek ALC662 6 Channel Audio Codec

I/O Connectors

1. 4 SATA 3Gb/s connector+1 IDE connector

2. 1 front audio connector

3. 4 USB 2.0/1.1 connector + 4 USB 2.0/1.1port

4. 1 COM port

5. 1 LPT port

6. 1 PS/2 port

7. 1 VGA port

8. 1 RJ-45 port

9. 1 audio jacks
