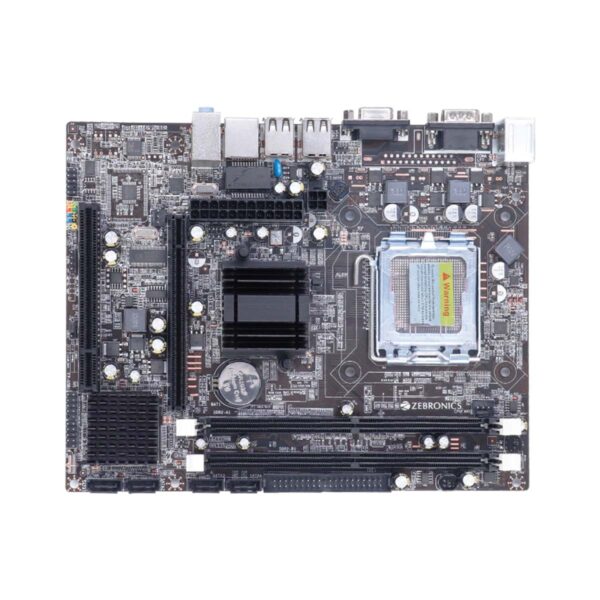

Zebronics Motherboard ZEB-G31 Socket 775

Specification :-

Support CPU :-
Intel Core 2 Quad/ Core 2 duo/ Pentium/ Celeron series.

Cheapest :-
North bridge – Intel G31 cheapest.
South bridge – Intel ICH7 Cheapest.

Memory supported :-
DDR2 800/667 MHz SDRAM (4GB MAX)
2x DIMM SLOTS

BIOS :-
AMI BIOS.

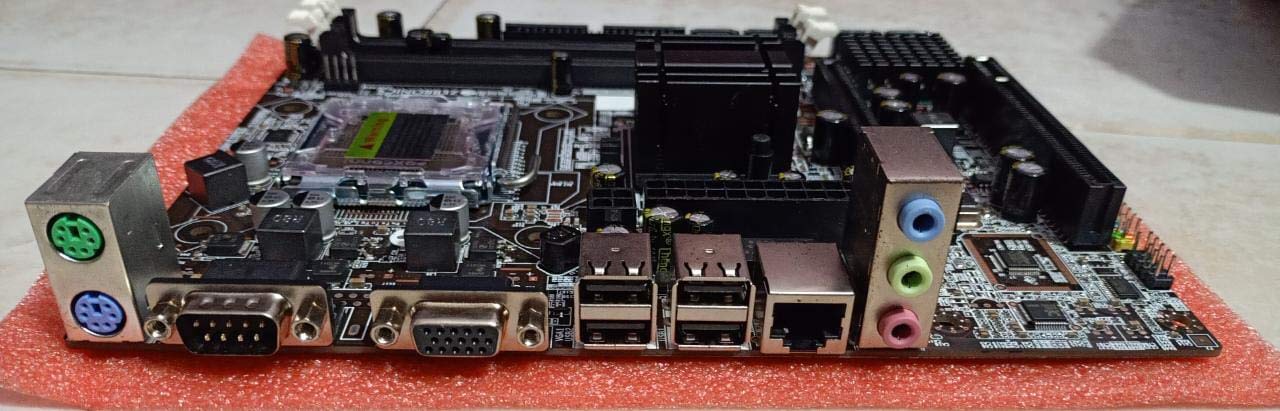

I/O interface :-
1x PS/2 keyboard pot, 1x PS/2 Mouse pot, 1x VGA pot, 1xCOM Pot 4x USB 2.0 Pots, 1x RJ45 pot, 1x 3 in 1 audio jacks.

Onboard interface :-
1 x front panel connector, 1x front audio connector, 2x USB 2.0 connector, 4x Sata part, 1x IDE SLOT,1×4 pin CPU fan connector, 1 x24 pin ATX power connector, 1x SYS fan connector, 1×4-pin atx12v power connector, 1x clean CMOS header.

integrated len :-
support Related 8105E 10/100 MBPS.

Expansion slot :-
1 PCI Express x16 slot. 1PCI slot.

From factor :-
Micro-ATX.

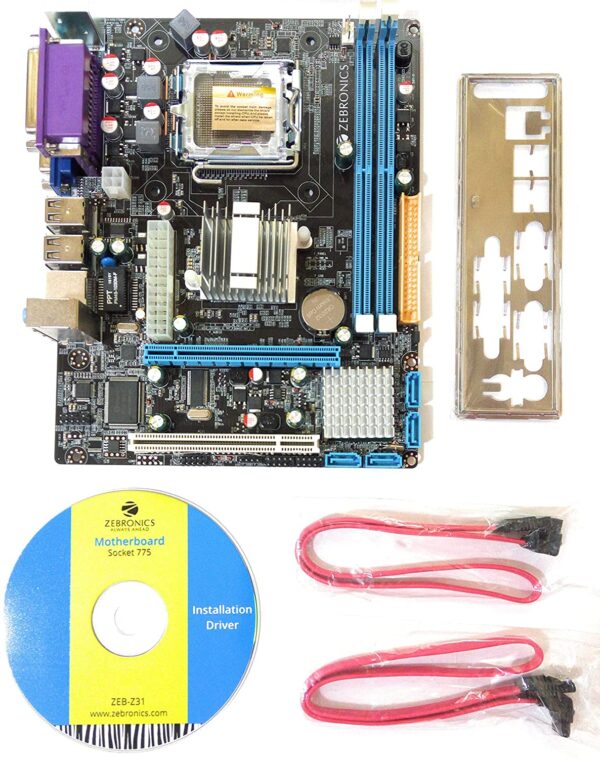

Package content :-

G31 Motherboard.
Sata cable.
I/O Backboard.
Driver DISC.
User Manual.
