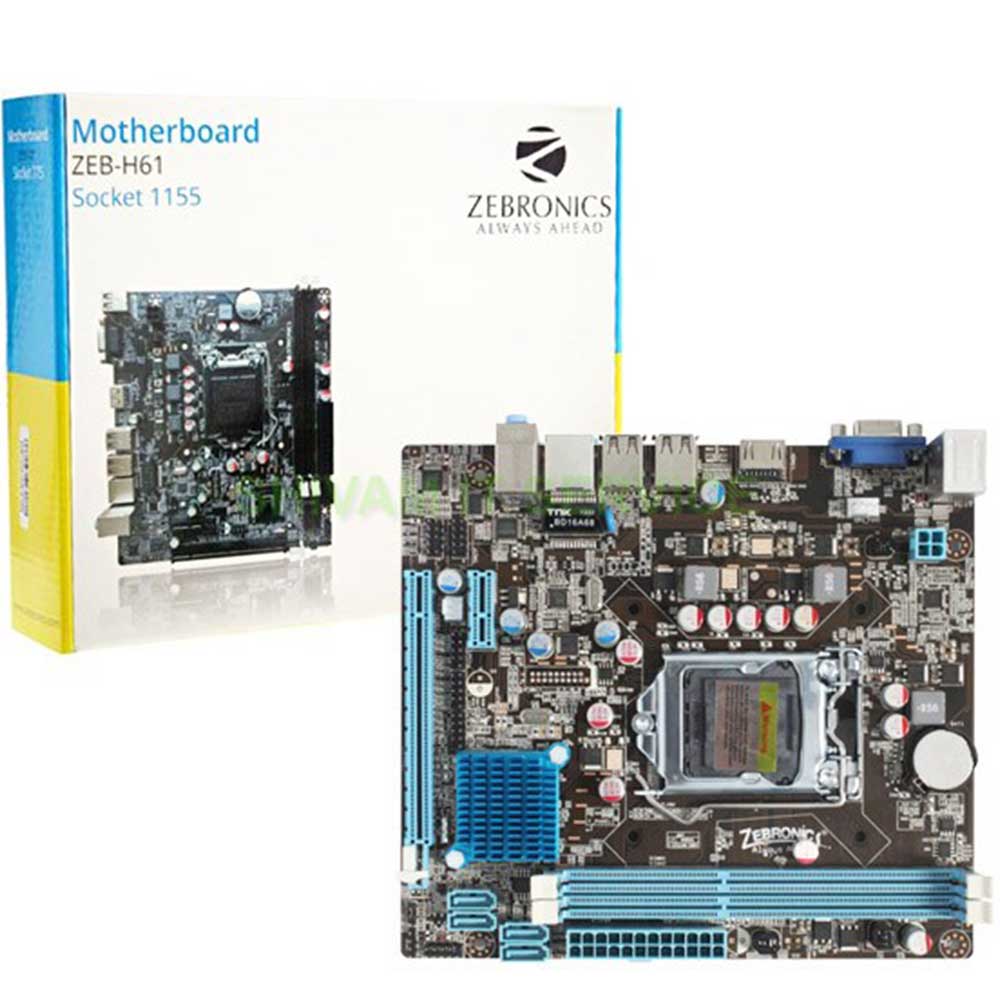

Zebronics Motherboard ZEB-H61 LGA 1155 Socket

Specification :-



Support CPU :-

Intel socket 11055 Intel i7/i5/i3 series CPU.



Cheapest :-

Intel H61/H67 cheapest.



Memory supported :-

2 DDR3 Dual channel Ram slot memory upto 16 GB support dual channel DDR3 1066/1333/1600 MHz memory.



BIOS :-

AMI BIOS.



I/O interface :-

1 x HDMI port, 1 x VGA port, 6 x USB 2.0 port, 1 x RJ45 port, 1 x 3-in 1 audio.



Onboard interface :-

1 x 24 pin ATX power connector, 1 x  4 pin ATX 12V  power connector, 2 x USB connector, (4 x USB 2.0 ports), front audio connector, 1 x Front panel connector, 1 x speaker connector, 2 x Fan connectors,  4 x Sata port,  1 x 3 pin CMOS header.



integrated Sound :-

with 6-channel HD audio codec onboard.



integrated len :-

support Realtek 8106E 10/100 mbps.



Expansion slot :-

1 x PCI Express x16 slot. 1PCI Express x 1 slot.



From factor :-

Micro-ATX.



Package content :-



H61 Motherboard.

Sata cable.

I/O Backboard.

Driver DISC.

User Manual.
